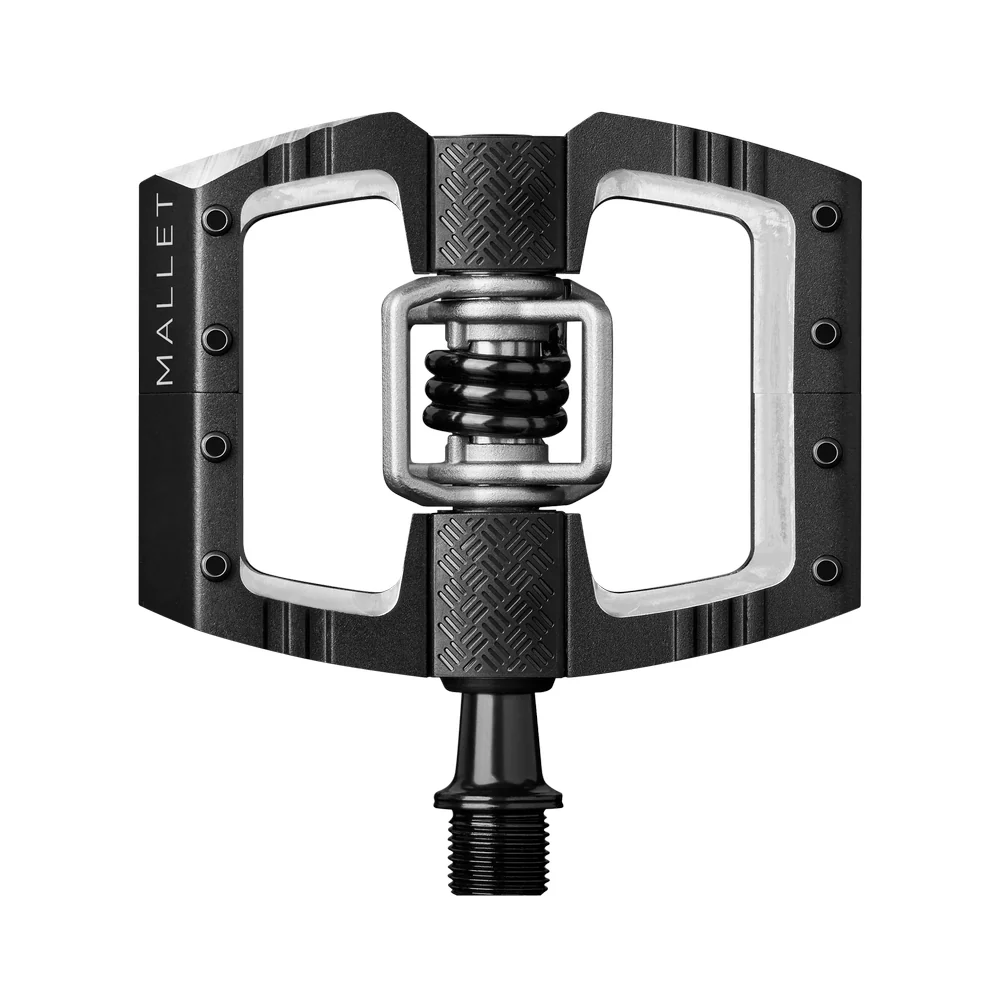

Crankbrothers Mattel DH Race II Mountain Bike Pedals - Black

The Crankbrothers Mallet DH pedal is designed for serious downhill enthusiasts seeking maximum grip and control. Featuring a wide platform and adjustable pins, these pedals provide exceptional stability on the toughest trails. The durable construction ensures longevity, while the clipless design allows for quick engagement and release, making them perfect for aggressive riding. Elevate your downhill experience with the reliability and performance of the Mallet DH!

Features

Concave platform for secure foothold
8 adjustable pins per side for grip
Traction pad technology customizable interface
Ribbed body for better traction when unclipped
Chamfered edges to reduce rock-strikes
57mm q-factor for stability at speed
4-sided entry / superior mud shedding
Customizable float & release angle
Premium bearing & double seal system
Owners Manual and Technical Documents here

Specification

Body Material	6061-T6 Aluminium
Body Dims (L x W)	100 mm x 78 mm
Wing Material	17-4PH Stainless
Spindle Length	57 mm
Traction Pins	8 Adjustable per side
Pin Length	8 mm
Inner Bearing Tyre	Igus LL-glide bearing
Outer Bearing Type	Enduro Max cartridge bearing
Endcap	Hex alloy
Spindle Material	Forged SCM 435 Chromoly Steel
Max Rider Weight	No restriction
Weight	479g per pair
Included cleat type	15° / 20° Standard Release, 6° Float
Cleat Notice	Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

Clipless Mountain bike

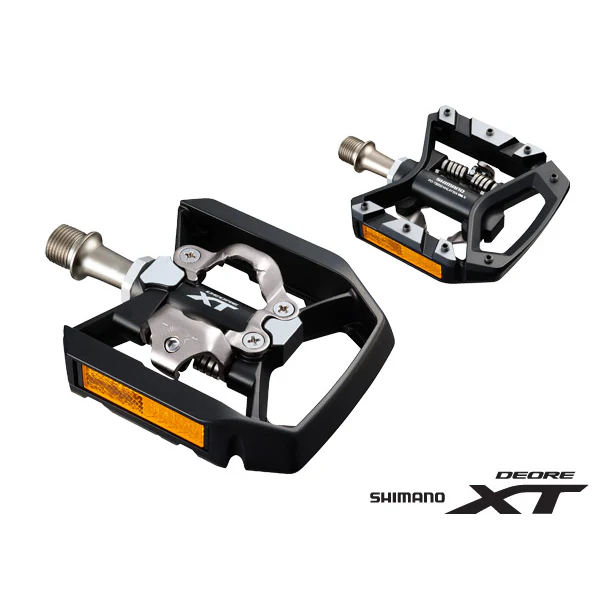

Shimano Deore XT PD-T8000 MTB Multi-Purpose Pedals

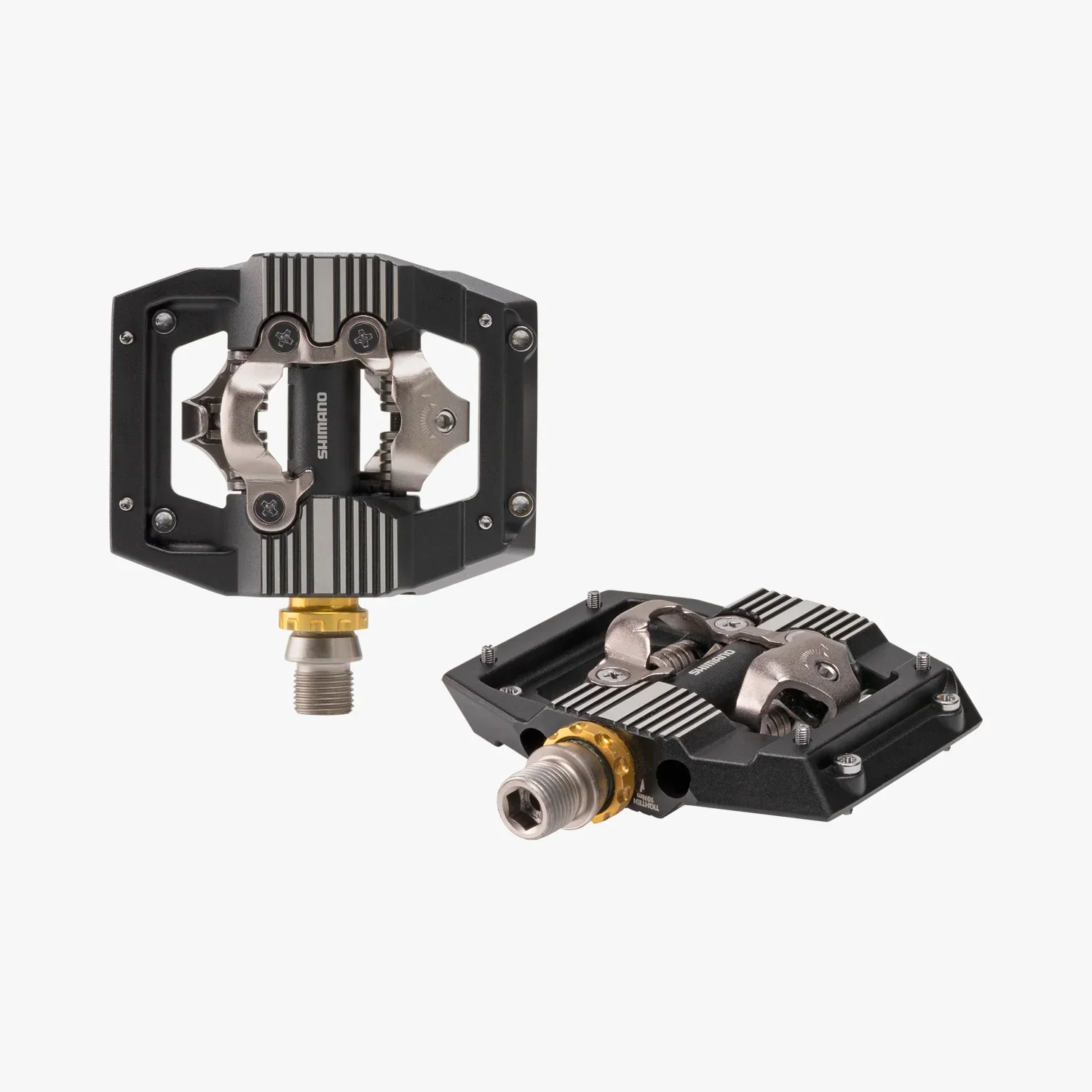

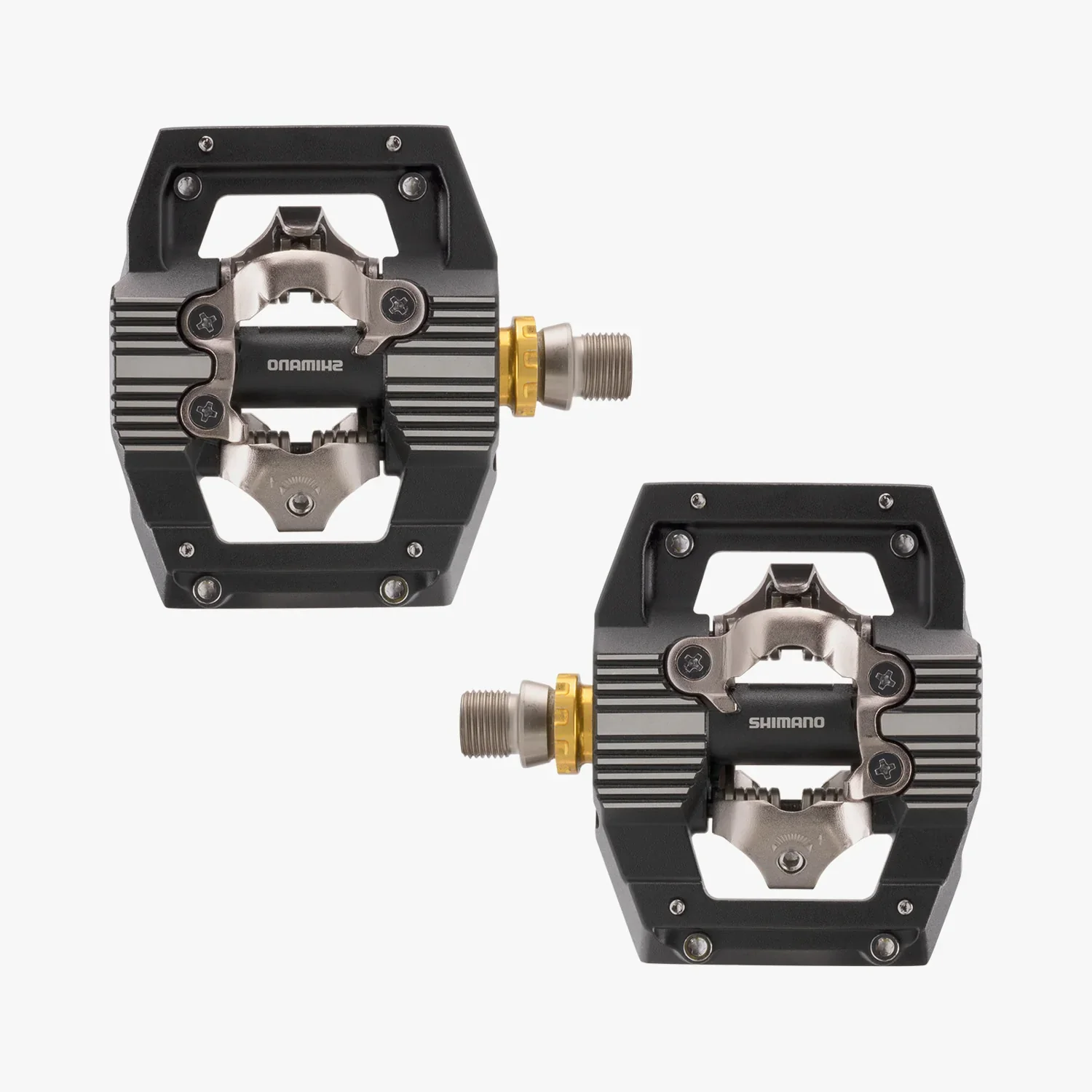

Shimano Saint PD-M821 Downhill/Enduro SPD Pedal

Crankbrothers Mattel DH Race II Mountain Bike Pedals - Black

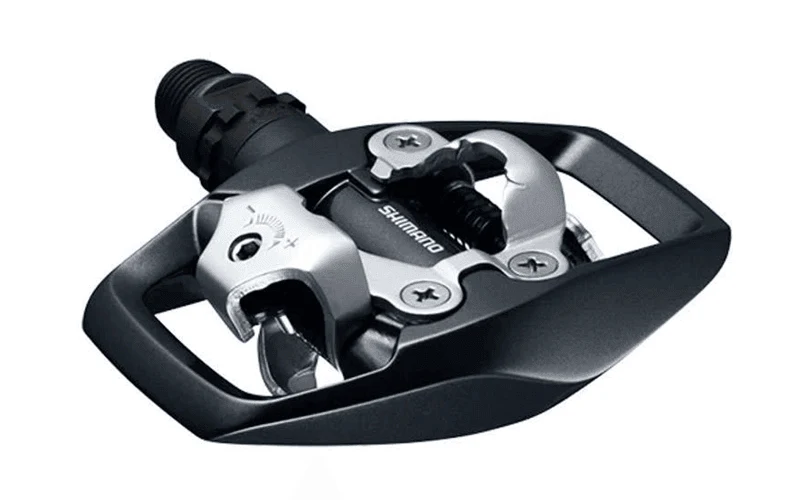

Shimano PD-ED500

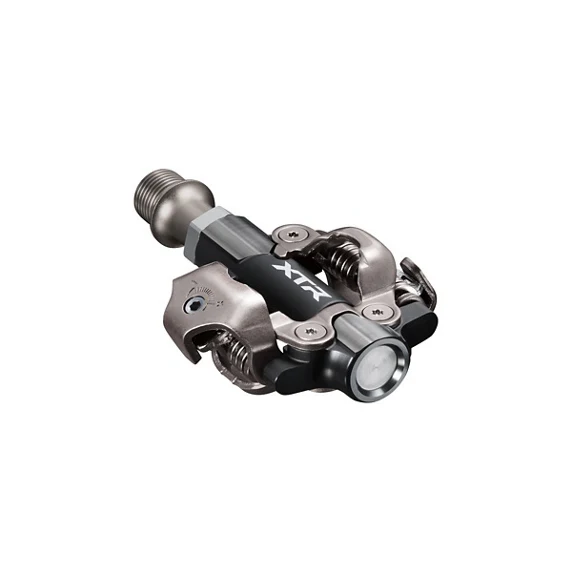

Shimano XTR Pedal PD-M9200 Dual Sided Black

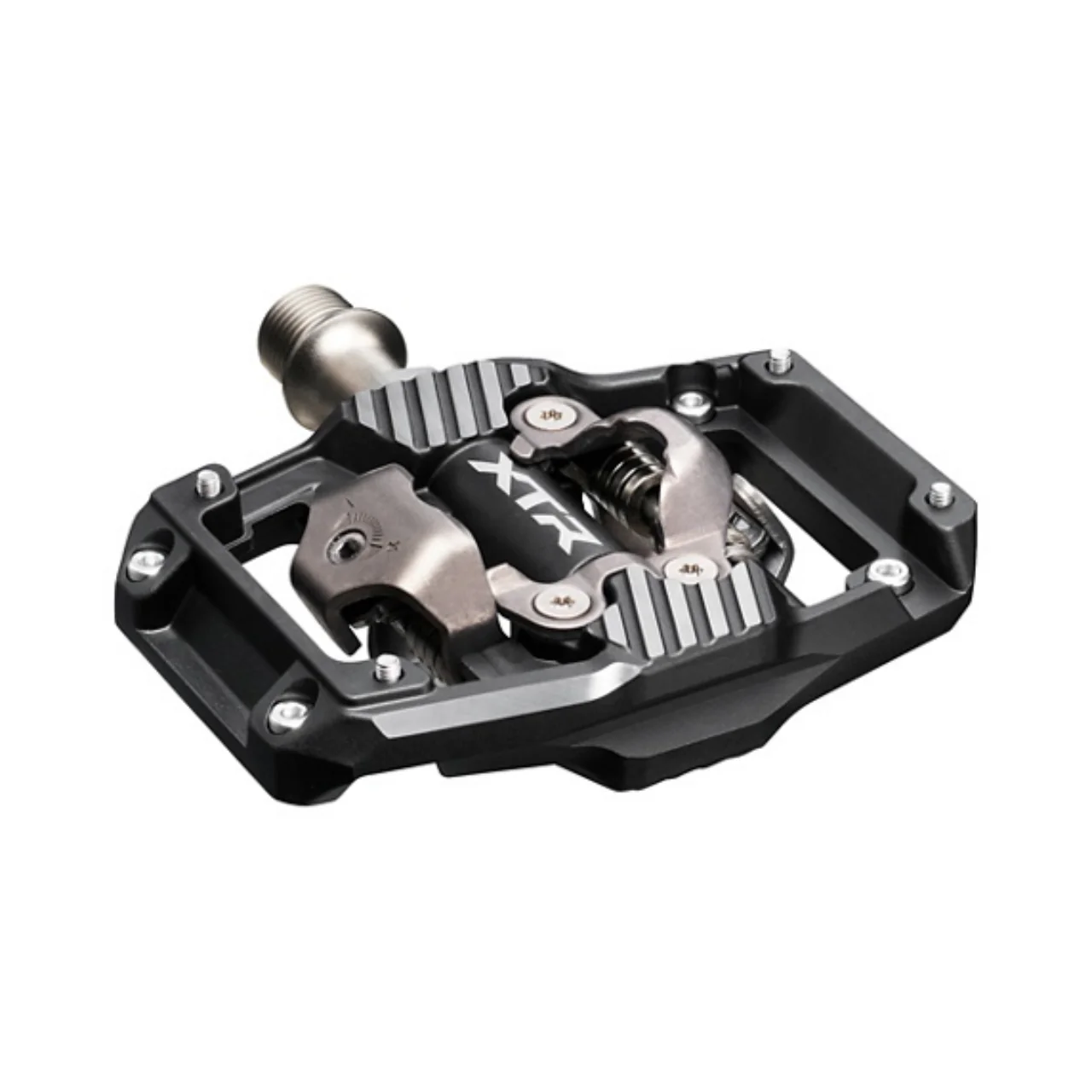

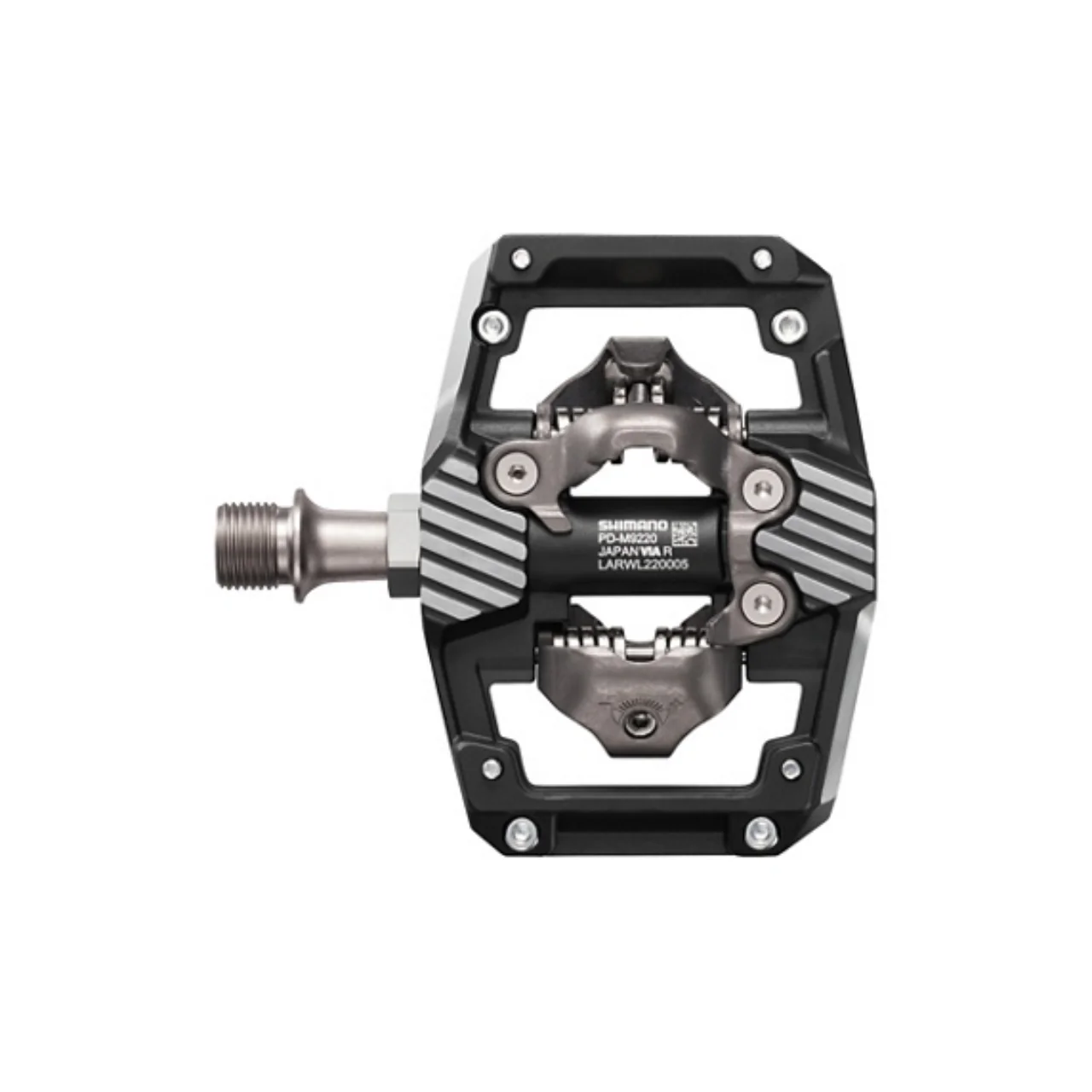

Shimano XTR PD-M9220 Trail SPD MTB Pedals
