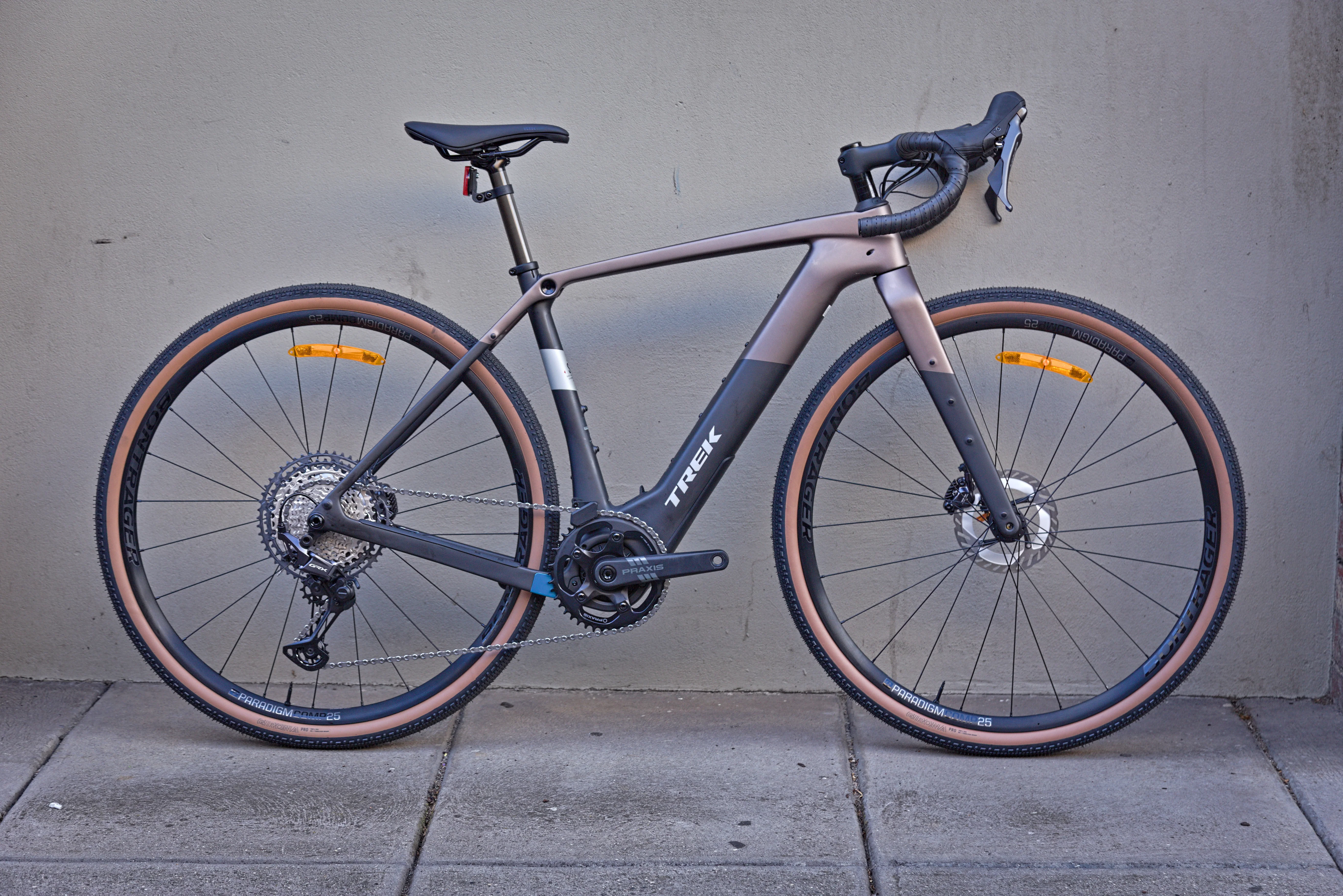

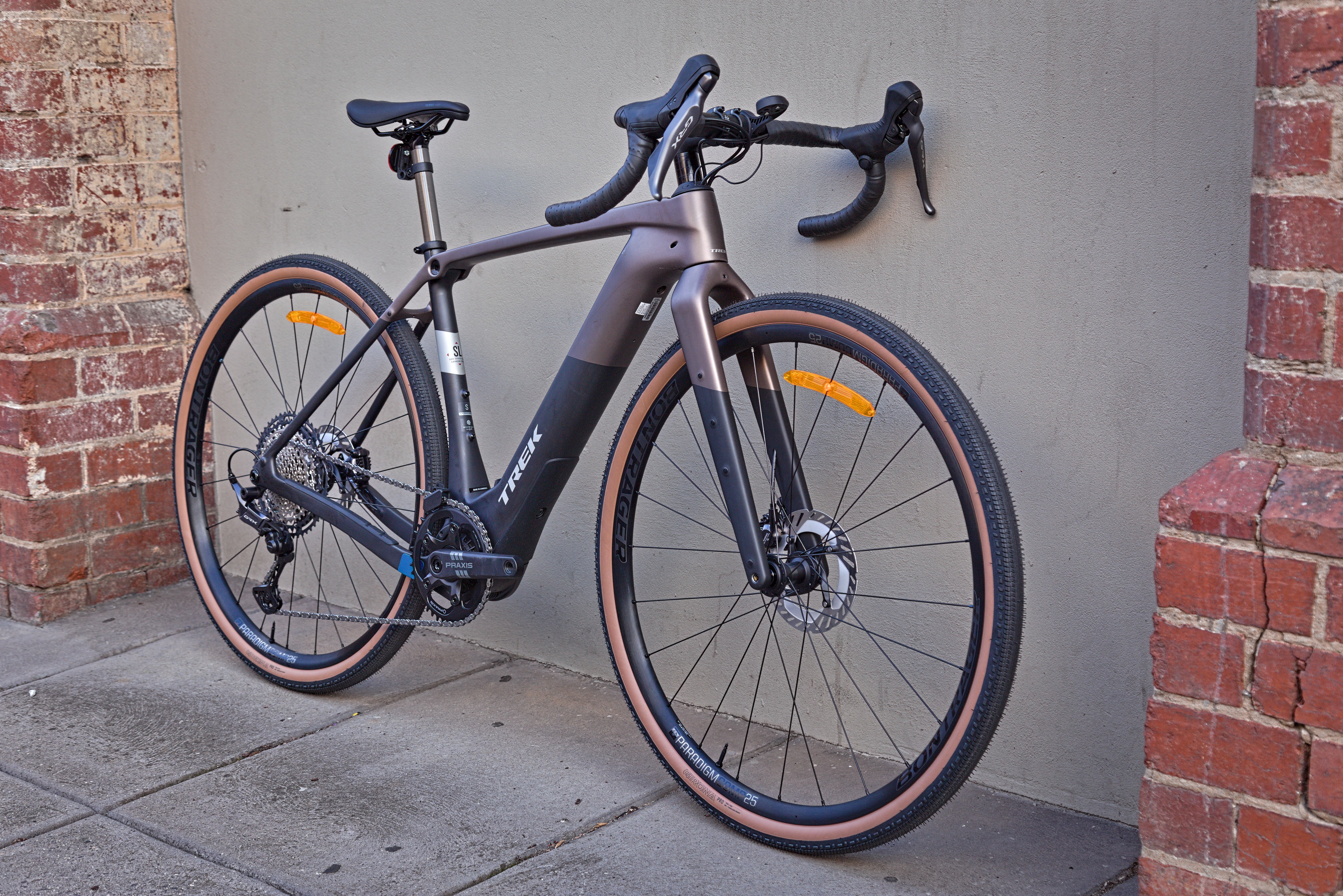

Trek Checkpoint+ SL 5 Electric Gravel Bike – Matte Bronze Age / Dark Web

The Trek Checkpoint+ SL 5 is an electric gravel bike designed for riders who want to go further, faster, and longer — without losing the natural feel of a traditional gravel ride. It blends lightweight performance with subtle electric assistance, making it ideal for epic gravel adventures, long endurance rides, and fast mixed-surface exploring.

At its core is Trek’s OCLV Carbon frame, paired with endurance-focused geometry that keeps you comfortable and in control when the kilometres start to stack up. The ride feels lively and responsive, while still offering the stability gravel riders love on loose surfaces and long backroads.

Power comes from the TQ HPR60 motor, delivering smooth, quiet assistance that feels natural rather than overpowering. It gives you just the right boost on climbs, into headwinds, or late in the ride when fatigue sets in. The integrated 360Wh battery is neatly hidden in the frame and offers plenty of range for big days out, while maintaining the sleek look of a non-electric bike.

The Shimano GRX 12-speed 1x drivetrain is purpose-built for gravel riding, providing reliable shifting and a wide gear range that’s perfect for steep climbs, rolling terrain, and fast flats. Durable alloy wheels round out the build, offering strength and reliability for everything from smooth bike paths to rough gravel roads.

Finished in Matte Bronze Age / Dark Web, the Checkpoint+ SL 5 looks as refined as it rides — understated, premium, and adventure-ready.

Key Features

Lightweight OCLV Carbon gravel frame with endurance geometry
TQ HPR60 motor for smooth, quiet, and natural-feeling assistance
Integrated 360Wh battery for long-distance rides
Shimano GRX 12-speed 1x drivetrain designed for gravel performance
Durable alloy wheels for mixed-surface reliability

If you’re looking for an e-gravel bike that feels like a true gravel bike — just with a little extra help when you need it — the Trek Checkpoint+ SL 5 is built to take you further than ever.

Specification

Frameset
Frame	500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle
Fork	RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
Weight
Bike - Weight	ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
Weight Limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-System
Battery	TQ 360Wh
Charger	TQ 4A charger
Controller	TQ LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 250watt maximum continuous rated power, 350 watt peak power
E-bike Classification	Class 1
Drivetrain
Shifter	Shimano GRX RX820, 12-Speed
Rear Derailleur	Shimano GRX RX822, 51T max cog
Crank	Size: S, Praxis Alloy, 165 mm length Size: M, M/L Praxis Alloy, 170 mm length Size: L, XL Praxis Alloy, 172.5 mm length
Cassette	Shimano XT M8100, 10-51, 12-Speed
Chain`	Shimano XT M8100, 12-Speed
Max. Chainring Size	1x:44
Wheels
Front Wheel	Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, 100x12 thru axle
Rear Wheel	Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
Front Skewer	Bontrager Switch Chamfered Thru Axle
Rear Skewer	Bontrager Switch Chamfered Thru Axle - Removable Lever
Tyre	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tubeless	Bontrager TLR sealant, 180 ml/6 oz
Rim Strip	Bontrager TLR
Max. Tyre Size	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
Saddle	Verse Short Comp, Steel Rails, 145mm Width
Seatpost	Bontrager Carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar	Size: S Bontrager Pro Gravel - 40cm Width Size: M & M/L Bontrager Pro Gravel - 42cm Width Size: L Bontrager Pro Gravel - 44cm Width Size: XL Bontrager Pro Gravel - 46cm Width
Handlebar Tape	Bontrager Supertack Perf tape
Stem	Size: XS Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70mm length Size: S, M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80mm length Size: L, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Brake Rotor	Shimano CL800, CentreLock, 160 mm
Rotor Size	Max brake rotor sizes: 180 mm front and rear

*Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if yo u were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Size	Rider Height	Inseam
XS	143 - 158 cm	67 - 74 cm
S	158 - 164 cm	74 - 77 cm
M	164 - 177 cm	77 - 83 cm
M/L	177 - 188 cm	83 - 88 cm
L	188 - 194 cm	88 - 91 cm
XL	194 - 203 cm	91 - 95 cm

Electric Bikes

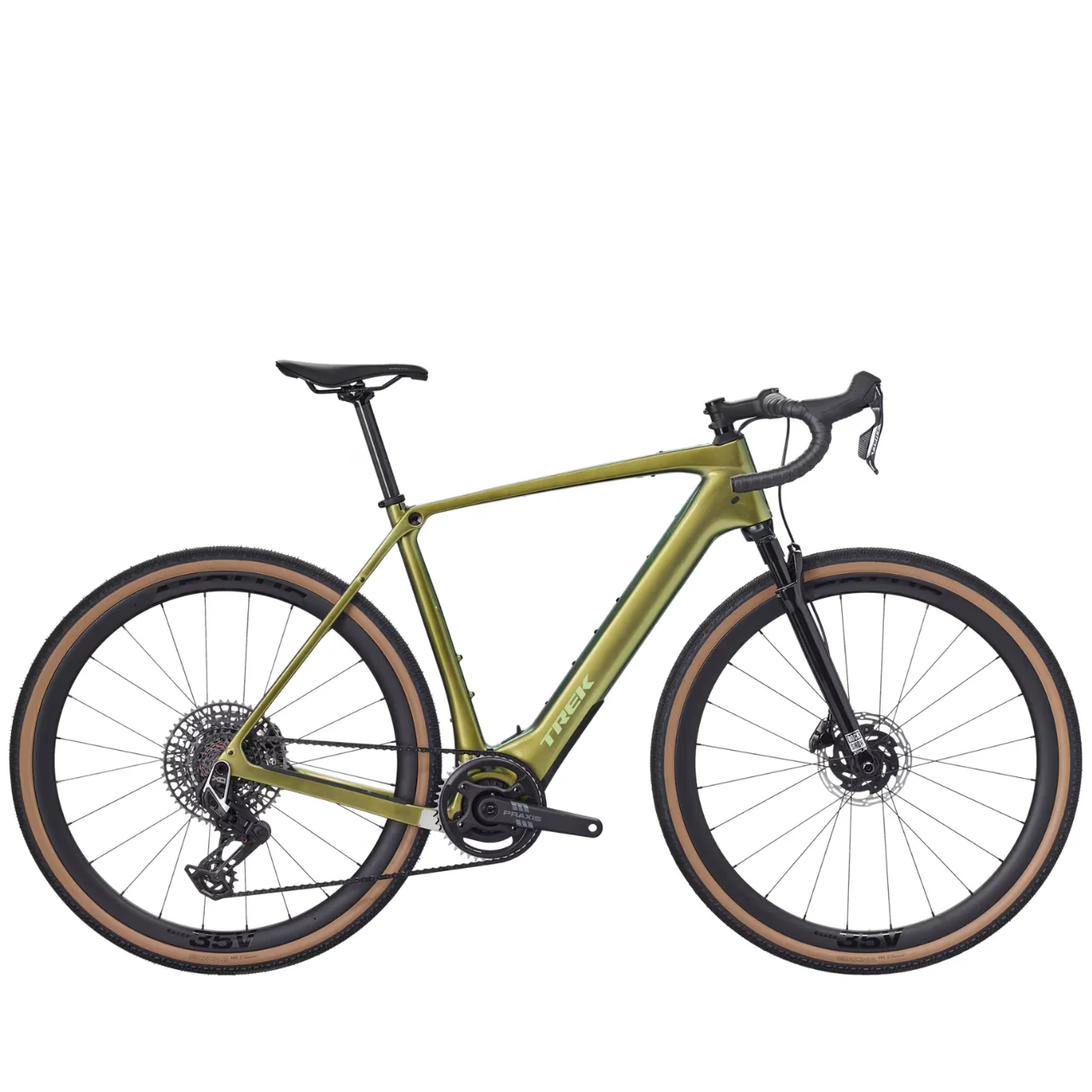

Trek Checkpoint+ SL 7 AXS Electric Gravel Bike - Chameleon Green

Trek Checkpoint+ SL 5 Electric Gravel Bike - Matte Bronze Age/Dark Web

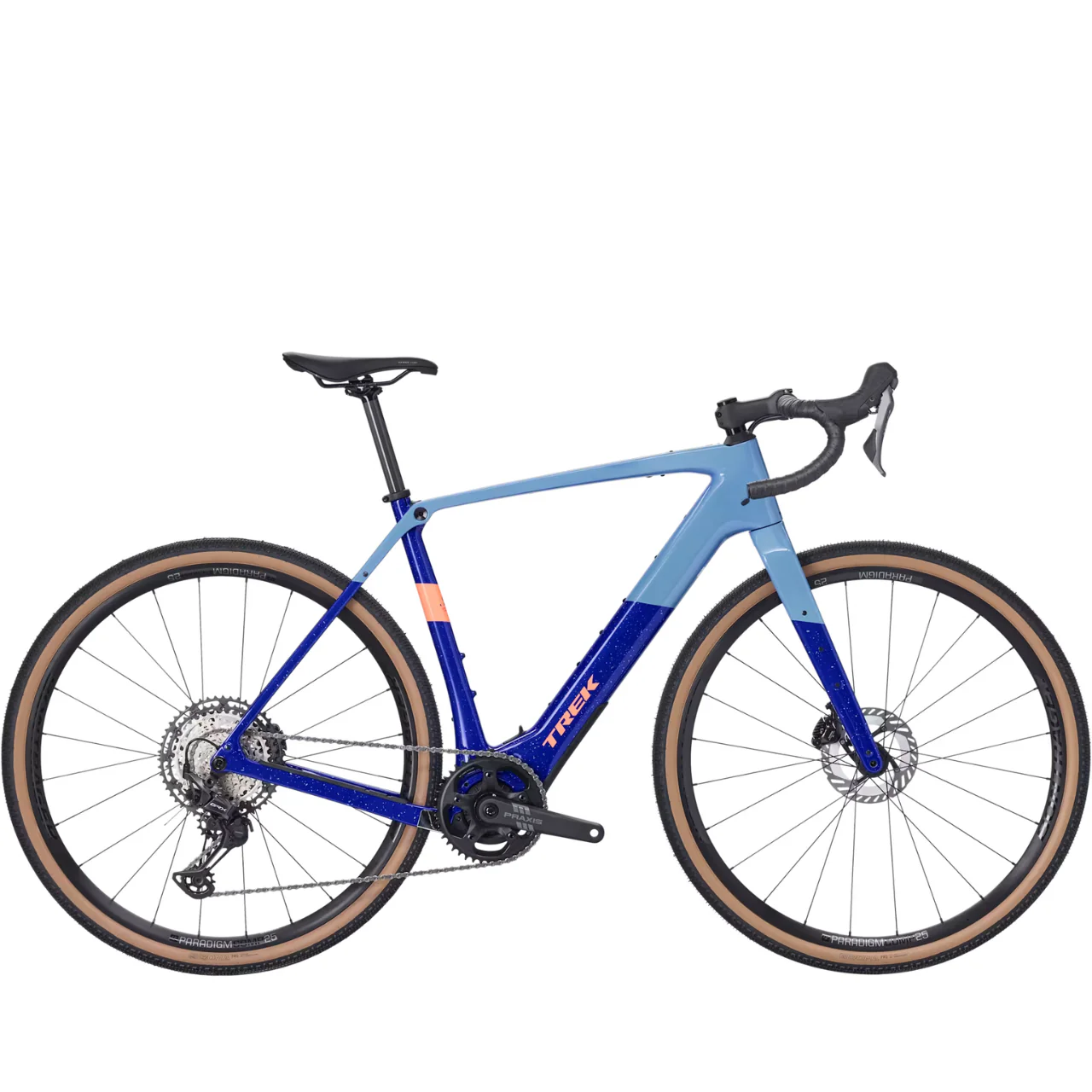

Trek Checkpoint+ SL 5 Electric Gravel Bike - Fjord Blue/Cobalt Blue
